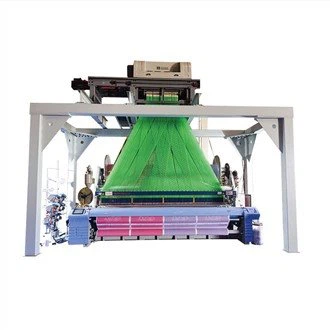

Jacquard Air Jet Towel Loom
Jacquard Air Jet Towel Loom
Lenado huab cua dav hlau loom yog ib qho qauv ntawm kev kub ceev cua dav hlau phuam looms nrog lub tswv yim tsim ntawm kev kub ceev, qis noj thiab dav weaving ntau yam.
Jacquard npuag muaj ntau yam kev siv, tsis yog tsuas yog ua rau cov ris xws li ris, ris tsho ua kis las, suits, thiab lwm yam, tab sis kuj rau txaj, ntaub, thiab sofas.
Cia siab tias yuav tau txais koj cov lus nug tshwj xeeb thaum ntxov, peb nyob ntawm koj qhov kev pabcuam txhua lub sijhawm!
|
1 |
Dav (cm) |
190, 210, 230, 260, 280, 300, 360, 380 |
|
2 |
Ceev |
300 - 500 RPM (tsim los ntawm cov khoom thiab dav) |
|
3 |
Nce Qhov siab |
0 - 12 hli |
|
4 |
Xov Woven |
Ntev fiber ntau Nm4 - Nm200, ntev fiber ntau tex 1.7 - tex 380 |
|
5 |
Weaving Adaptability |
Txhua yam ntawm Terry phuam productions |
|
6 |
Down Warp tso tawm |
Weaving beam txoj kab uas hla Φ800 mm |
|
7 |
Up warp Cia-tawm |
Weaving beam txoj kab uas hla Φ1000 mm |
|
8 |
Txoj kev tso tawm |
Electronic tso tawm |
|
9 |
Txoj kev coj |
Cov khoom siv hluav taws xob Lub tshuab tuaj yeem ntsia tau rau hauv qhov ntim loj, qhov siab tshaj plaws ntawm 1500 hli |
|
10 |
Tsav |
Super pib lub cev muaj zog; direct tsav nres los ntawm electromagnet nres |
|
11 |
Qhib ntaus ntawv |
Txais siv hluav taws xob jacquard |
|
13 |
Weft Variability |
Kev tswj tus kheej los ntawm kev tso tawm hluav taws xob thiab hluav taws xob nqa, txaus siab rau txhua yam kev tsim cov phuam so tes |
|
14 |
Weft Insertion |
Main thiab sub-nozzles ua ke system, pab lub ntsiab nozzle, profiled reed, stretch nozzle |
